Steampunk Protostar, Part 30 - A Smoke Vent For a Space Rocket!

Questions on a typical doctor's office Patient Medical History form:

Q:   Are you a smoker?
A:  "Only when I'm on fire!"

Q: How Long?
A:  "Until somebody puts me out!"

Because the Protostar is purportedly a steam-driven vehicle, it requires all of the provisions for the operation of a fire burning steam engine:  air intakes and a 'smokestack'.

This part of the build covers the latter.

For the smoke vent, I am going fairly simple here with a section of 1/4 inch launch lug cut at an angle and affixed to the lower mid part of the body tube.  Of course it will include some of the usual Victorian era embellishments and details.

To start off, a piece of masking tape is wrapped around a 1/4 inch dowel, and the launch lug is slid on so that it is securely held.

A little work with a razor saw produces the steeply angled end.

Wrapping a sheet of sandpaper around the model's nose cone base helps to shape-sand the gluing end of the lug so that it will conform to the curvature of a future mounting plate.

A bit of CWF and some sandpaper are applied to hide the spiral seams.

Next, a wrap of 'riveted' Avery paper is applied around the end of the stack as a decorative detail...

 ...and a little bit of black paint completes the "smoke stack":





Next post:  A Smokestack mounting plate.

Launch Date: 14 July, 2019 - A Couple of 3FNC Flights

Today’s launch was yet another of those shoe box affairs in which I take a quick jaunt to the nearby park and put up a couple of small birds within the span of half an hour.  Weather conditions were very good at Founders Park in Castle Rock, with a temperature around 80 degrees, winds at 3 to 4 mph, and clear visibility with partial high cloud cover.

This session saw the launch of the old Hornet for its 47^th flight on an A3-4T motor.  The bird turned in its signature great performance and was recovered successfully.





The second rocket flown in this session was the Astron Alpha.

Flying on A8-3 power, the model turned in a great flight and was recovered about 100 yards downfield after drifting a bit under a ten inch parachute with spill hole.





All in all, an enjoyable time spent at the park feeding the insatiable rocket-flying bug!













Launch Date: July 6, 2019 - A day in Pueblo

Today, fellow Castle Rock rocketeer Jim Gazur and I packed up the car with rockets and headed south  - 90 miles away to Pueblo, Colorado – to participate in a sport meet sponsored by S.C.O.R.E., the guys who hosted NARAM-60 last August.

Upon arriving at the spacious launch site around 9:45 a.m., we found about thirty rocketeers already out and sending models aloft.   The weather conditions were near perfect – around 80 degrees and wind conditions varying from dead calm to only occasional gusts to 5 mph.

I was immediately impressed with the launch site and facilities.  S.C.O.R.E. boasts a nice launch rack system on a cement pad with high power pads placed farther out.  They also have a small shed on-site for storing equipment.

After introducing myself to several of the members, I set about prepping my first flight of the day.  It took me awhile because I had to stop and watch several of the medium and high power birds that members were launching at regular intervals.

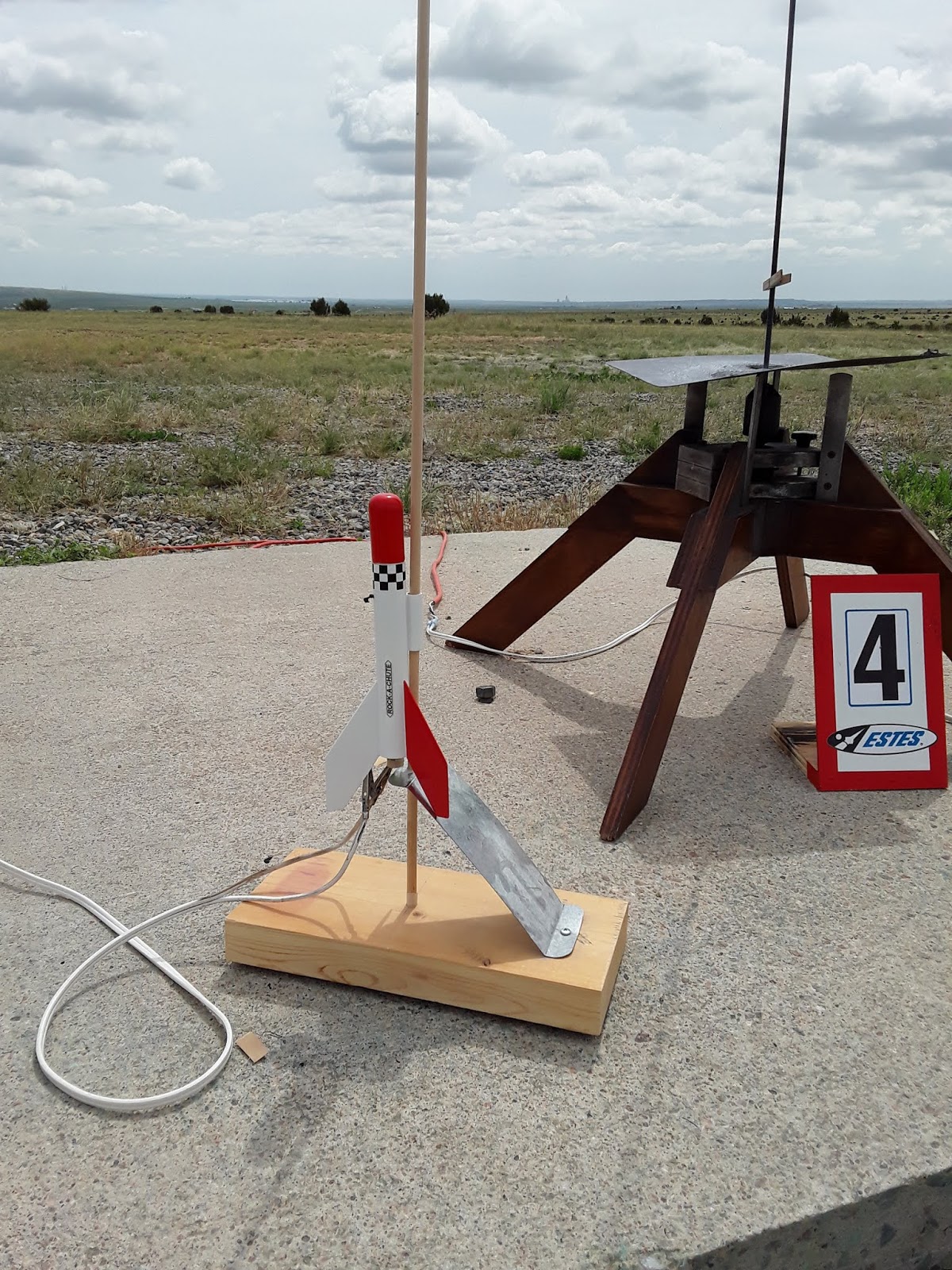

I soon had my Carlisle Mark II Rock-A-Chute replica on the home made launch pad with wood dowel rod.
