Steampunk Protostar #15 Mounting The Stock For Turning

Whenever I turn a nose or tail section for a model rocket, the stock usually get mounted to the lathe's face plate attachment.  Spindle turning between centers doesn't work on these parts because one end of the blank needs to be clear for shaping and finishing a tip.

The first step in mounting turning stock to the face plate is to construct a mounting plate.  This consists of a piece of wood that can be screwed to the metal face plate.  For most LPR nose cones I use a piece of 1x4 dimensional pine cut to 3-1/2" square.

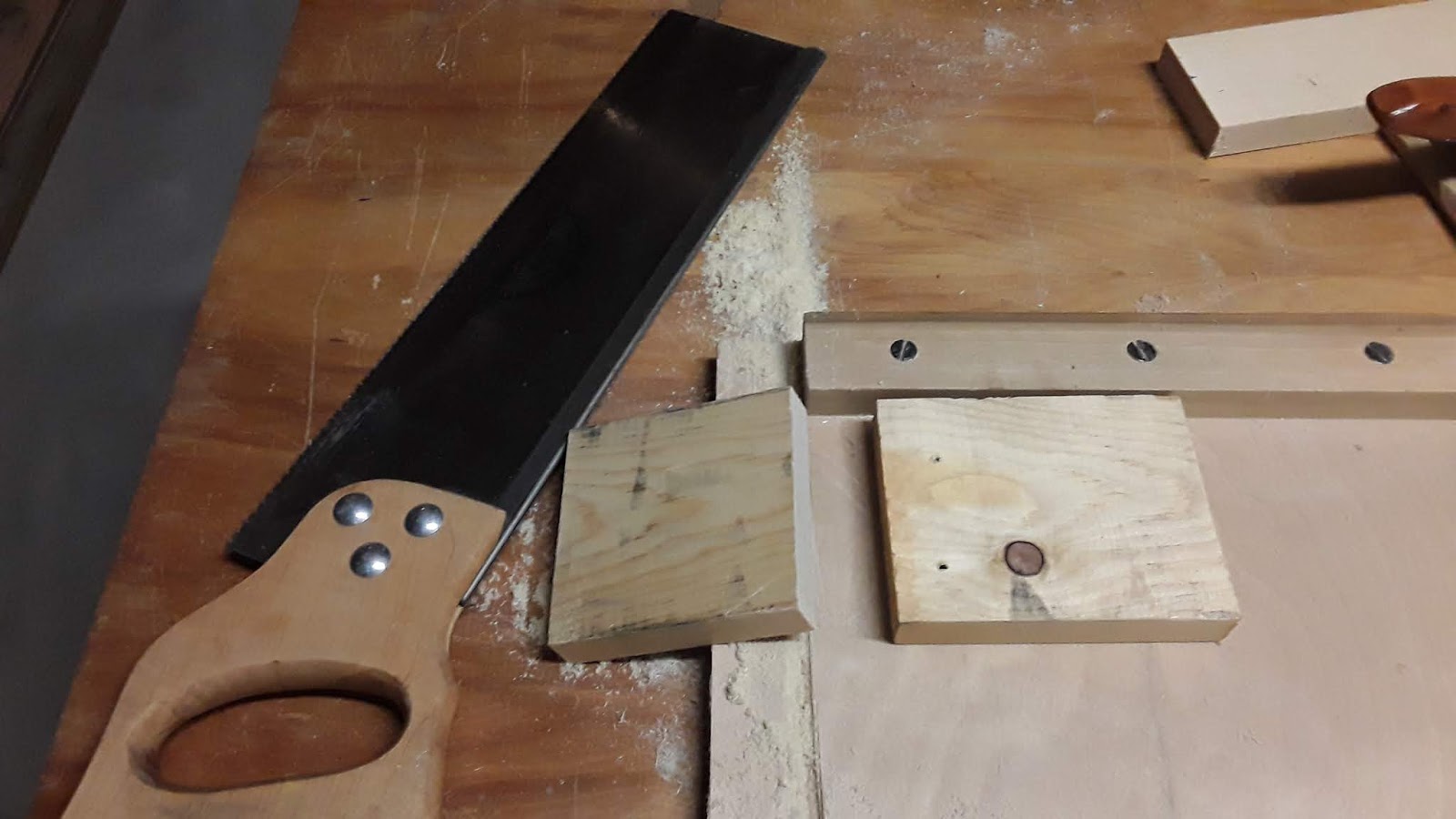

Again, turning to my arsenal of hand tools, I use a backsaw and a bench hook to cut the board.



Drawing lines diagonally across the board establishes the center point.  This is done on both sides of the board.



The board is then lined up with the mounting holes on the lathe face plate.  The reference lines drawn on the mounting board should appear evenly aligned in the face plate when viewing through the mounting holes. If done properly, the board should end up well centered on the plate.






A scratch awl is used to mark the locations of the holes on the mounting board.
(Geez, who else uses awls these days?)



Using the awl holes as guides, I drill out pilot holes for the screws.

 Vintage 'eggbeater' hand drill this time.










The board can now be screwed to the face plate, using #8 x 3/4 hex head sheet metal screws.





Next, some white glue (or yellow wood glue) is applied liberally to the end of the balsa stock.











And the stock is carefully placed into position onto the mounting board.  If the corners of the square stock line up precisely with the diagonals lines drawn on the mounting board, everything should be centered and aligned.

A weight is placed on top of the stock to keep things in place while the glue dries.  In this instance, I'm using a baby food jar full of nickels.





Next, it's off to the lathe to start turning....


Thursday, September 27, 2018

Steampunk Protostar #14 - Preparing The Pod Stock

Now that the design of the pod end is established, it's time to grab a piece of balsa stock and mark it for cutting out the turning blank.

Hobby Lobby carries a good selection of balsa blocks, including a 3" x 3" x 12" one that is ideal for making many noses and other parts.

My intention with this part of the project is to make all three pod parts one at a time in series from the same piece of balsa stock.

Since the pieces are intended to match a plastic cone that is BT-50 size, I will mark out a block that is 1-1/4" square. This gives me enough edge margin to turn the blank to a cylinder that is close to finished size.


Once the block is marked on all sides and ends, I mount it in the wood vice and begin carefully making the cuts with a dovetail saw.  The initial cuts are made at an angle at all four corners of the piece, carefully following the marked lines.



At this point, you might be asking, "Hey, BlastFromThePast, why are you cutting the stock this way?  Wouldn't a power saw work better?"  Probably faster, yes.  I do have a bandsaw upstairs in the garage on which I could very well accomplish this operation, but, being a hand tool woodworker, I simply prefer using hand saws.

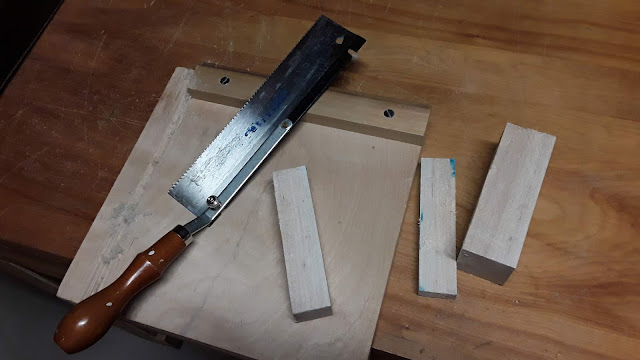

Next the stock gets placed on a bench hook (another archaic 'Neanderthal' fixture) and the final through-cut is finished.  Note that the photo  shows the cut seemingly going off the line.  It was 4 a.m. when I marked out the piece, and one of the ends was accidently measured out a couple of millimeters off.  I noticed it in time and drew a new corrected cut line.
